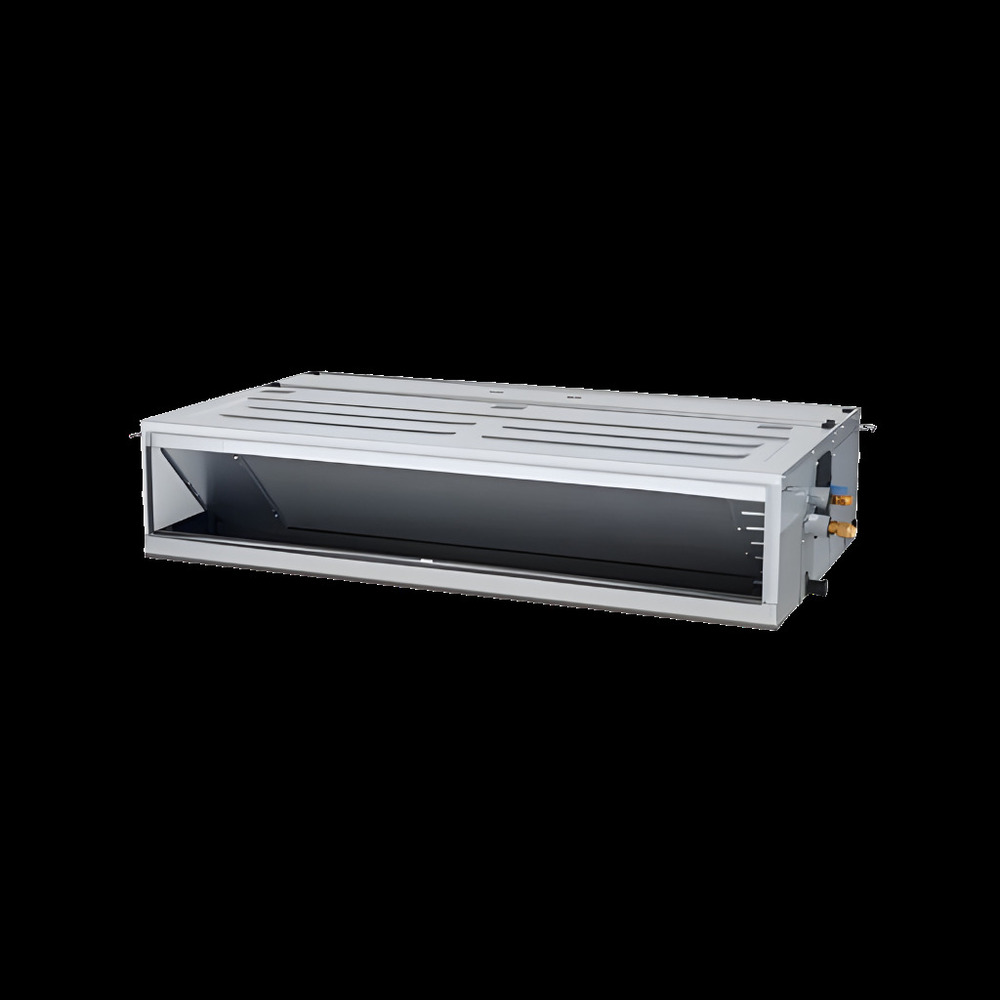

Medium Static Pressure Ductable Unit

Get a Price/Quote

MOQ : 1 Unit

Medium Static Pressure Ductable Unit Specification

Condition
New

Power Consumption
3.5 - 9.8 kW (as per model)

Place of Origin
India

Refrigerant
R410a / R32

Running Current
6.1 - 15.8 A

Type Of Compressor
Hermetically Sealed

Mounting
Ceiling Suspended

Compressor
Scroll Type

Air Flow Capacity
1600 - 4200 CFM

Outdoor Fan Input
280 - 900 W

Heating Capacity
38,000 to 105,000 BTU/hr (Optional)

Power Supply
3 Phase, 50 Hz

Power Mode
Single / Three Phase

Temperature Control
Digital Thermostat

Filtration Grade
Pre-Filter (Washable)

Indoor Fan Input
175 - 470 W

Cooling Capacity
36,000 to 102,000 BTU/hr

Dimension (L*W*H)
1320 x 700 x 425 mm to 1800 x 950 x 465 mm

Sensible control
Microprocessor Based Control Panel

Type
Medium Static Pressure Ductable AC Unit

Cooling/Heating
Cooling Only / Cooling & Heating (Optional)

Capacity
3.0 TR to 8.5 TR

Power Source
Electric

Voltage
380-415V / 3Ph / 50Hz

Color
Grey

Weight (kg)
85 to 140 kg (depends on model)

Working Temperature
17C - 52C

Fan Speed
3 Speeds / Variable

Noise Level
42-54 dB(A)

Energy Efficiency Rating
3 Star / 5 Star (as per model)

Remote Operated
Yes

Safety Features
Overload Protection, High/Low Pressure Protection, Anti-Freeze Thermostat

Installation Kit
Supplied with Standard Accessories

Piping Length
Max 30m

Drain Pipe Size
25 mm OD

Max Piping Height Difference
20m

Heat Exchanger
Copper Tube, Aluminium Fin

Controller
Wired/RF Remote

Panel Display
LED Fault Diagnosing

Application
Commercial & Industrial HVAC

Indoor Noise
Low, Medium, High settings available

Medium Static Pressure Ductable Unit Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Medium Static Pressure Ductable Unit

The Medium Static Pressure Ductable Unit offers a triumphant harmony of performance and versatility, perfect for noble commercial and industrial spaces. Available in 3.0 TR to 8.5 TR capacities, this laureate-grade AC delivers ephemeral comfort with customizable cooling and optional heating. The copper tube with aluminium fin heat exchanger guarantees efficient thermal exchange, while energy ratings of up to 5 stars ensure reduced power consumption. Featuring an LED fault-diagnosing panel, multi-speed fan, and essential safety protections, this new-age, ceiling-suspended unit comes with an exclusive discount for service providers and suppliers across India.

Exceptional Features and Versatile Utility

Experience advanced functionality with the Medium Static Pressure Ductable Unit, equipped with a digital thermostat, microprocessor-based control, and three-speed variable fans to optimize airflow comfort. The device is tailored for both cooling-only and cooling-heating applications, making it ideal for industrial and commercial environments with high demands. Its LED panel for fault diagnostics and remote control support further enhance user convenience while overload and anti-freeze protections secure longevity and reliability.

Shipped Goods, Certifications, and Domestic Markets

Our Medium Static Pressure Ductable Units are shipped goods backed by rigorous packaging to ensure their integrity during transport. Main export markets span Asia, with a notable presence in the domestic mar of India. Payment terms are flexible, accommodating a range of business needs. Every unit is certified for safety and performance, honoring our commitment to delivering quality products with verified credentials tailored for international and domestic suppliers, traders, and service providers.

FAQ's of Medium Static Pressure Ductable Unit:

Q: How does the LED fault diagnosing panel help with maintenance?

A: The LED fault diagnosing panel provides real-time alerts for system errors, making troubleshooting and maintenance much faster and more efficient. Technicians can identify and resolve issues quickly, reducing downtime.

Q: What are the noise levels and where can this ductable unit be installed?

A: The unit operates at noise levels between 42 and 54 dB(A), suitable for commercial and industrial spaces where silent operation is valued. Its ceiling-suspended design enables discrete installation in diverse large-area settings.

Q: When is it recommended to use the optional heating feature?

A: The heating feature is beneficial in environments that require climate control year-round. It is recommended from late autumn through early spring, or in industries with processes sensitive to temperature changes.

Q: Where is this product manufactured and who are the main users?

A: This Medium Static Pressure Ductable Unit is made in India, catering primarily to commercial and industrial users such as service providers, suppliers, and traders in HVAC solutions.

Q: What safety features are included in the unit?

A: Safety is assured with overload protection, high/low pressure monitoring, and an anti-freeze thermostat to prevent system damage, thus ensuring durability and secure operations.

Q: How does the microprocessor-based control benefit usage?

A: The microprocessor-based control enables precise regulation of temperature and airflow settings, providing an optimal environment while minimizing energy consumption and operational costs.
