Top Flow VRF Unit

Step into the future with our Top Flow VRF Unit, the finest choice for those seeking advanced climate control solutions in commercial and industrial spaces. As a leading service provider, supplier, and trader with over 16 years of experience, we are proud to offer the best-in-class products like the Voltas Top Flow VRF Unit and O General Top Flow VRF Unit, catering to a wide range of applications across All India. Personalise your environment with these superlative units, which stand out for their energy-efficient performance and intelligent operation. Find improved flexibility in installation and unrivalled reliability, setting a new standard in the industry. These units boast the best-in-segment cooling capacity, whisper-quiet operation, superior air distribution, and seamless adaptability to varying room sizes. By comparing leading brands, you can select a must-have Top Flow VRF Unit that truly matches your requirements. Experience the superlative combination of durability, advanced technology, and cost-effectiveness that only our collection provides-trusted by businesses nationwide who want the absolute best for their HVAC needs.

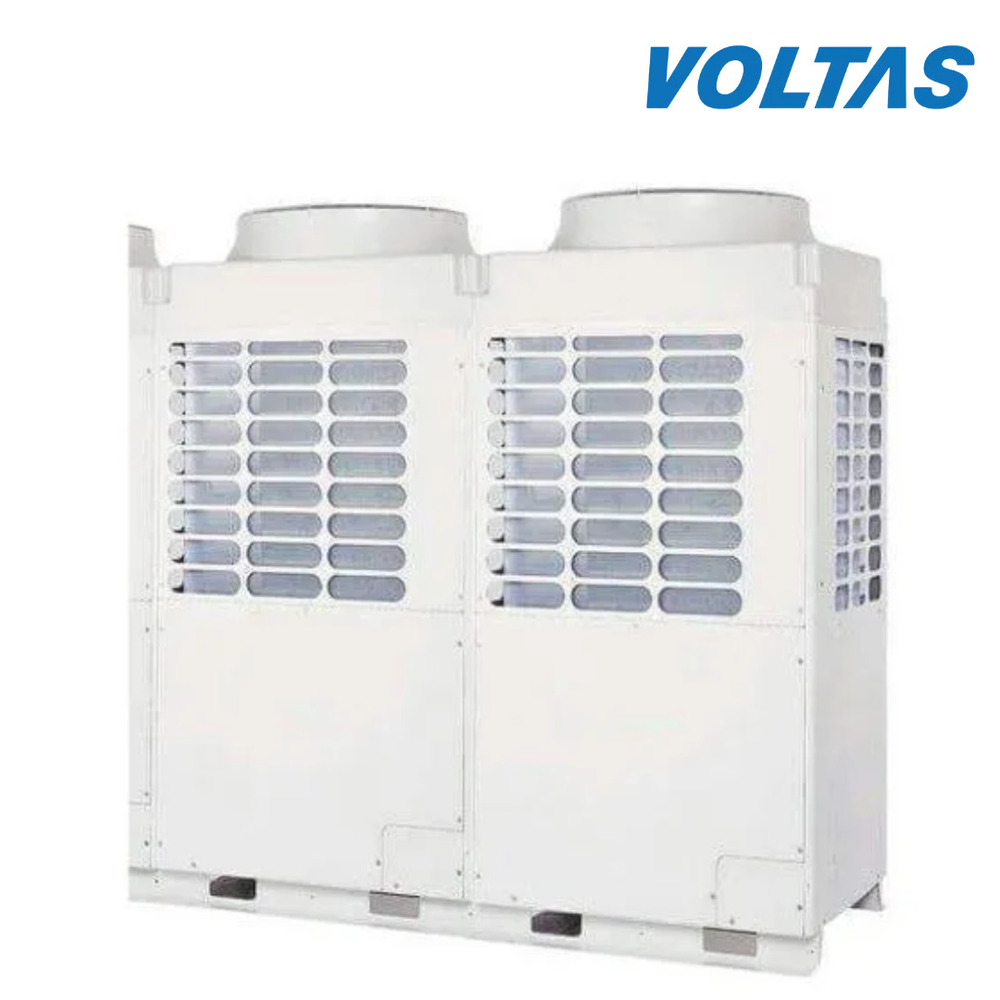

Voltas Top Flow VRF Unit

MOQ : 1 Unit

Air Flow Capacity
8000-16000 m3/h (varies by model)

Capacity
8 HP - 26 HP (varies by model)

Color
White

Compressor
Other, Twin Rotary / Scroll (varies by model)

Condition
New

Cooling Capacity
22.4 kW - 72.8 kW (varies by model)

Cooling/Heating
Other, Cooling & Heating

Dimension (L*W*H)
1078 x 400 x 1653 mm (8 HP); Other models vary

Energy Efficiency Rating
Other, High EER (up to 4.5)

Fan Speed
Multi-speed

Filtration Grade
Standard filtration

Heating Capacity
25.0 kW - 80.0 kW (varies by model)

Indoor Fan Input
Varies by indoor unit selection

Mounting
Floor Standing

Noise Level
58 dB(A) (Outdoor Unit)

Outdoor Fan Input
230 W - 600 W (varies by model)

Place of Origin
India

Power Consumption
Varies as per model and application

Power Mode
Other, Auto / Manual

Power Source
Other, Electric

Power Supply
380-415V / 3Ph / 50Hz

Refrigerant
R410A

Remote Operated
Yes

Running Current
16A - 40A (varies by model)

Sensible control
Yes

Temperature Control
Microprocessor based

Type
Top Flow VRF Unit

Type Of Compressor
Other, DC Inverter

Voltage
380-415V / 3Ph / 50Hz

Weight (kg)
275 - 425 kg (varies by model)

Working Temperature
-5C ~ 48C (Cooling), -20C ~ 24C (Heating)

Know more

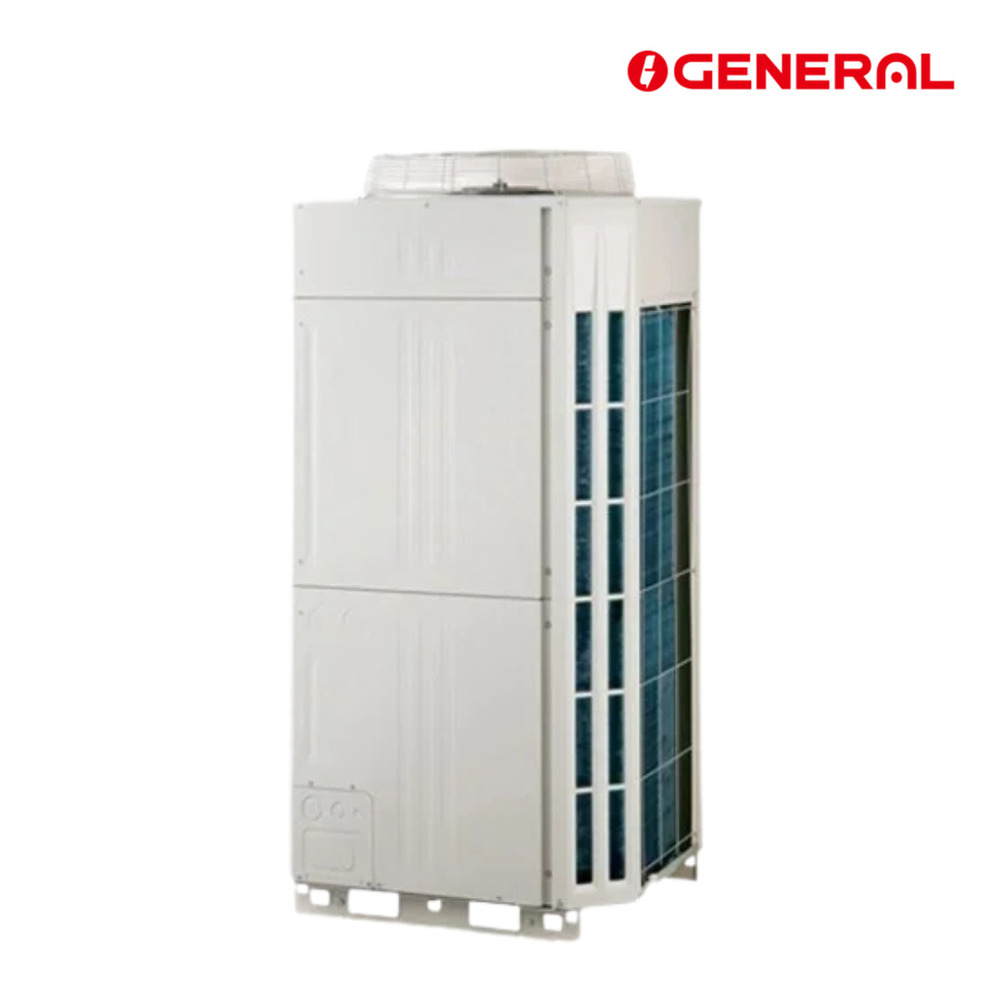

O General Top Flow VRF Unit

MOQ : 1 Unit

Air Flow Capacity
9000 m3/h

Capacity
16 HP

Color
White

Compressor
Other, Twin Rotary

Condition
New

Cooling Capacity
45 kW

Cooling/Heating
Other, Yes

Dimension (L*W*H)
1270 x 930 x 1600 mm

Energy Efficiency Rating
Other, High

Fan Speed
Variable

Filtration Grade
Standard

Heating Capacity
50 kW

Indoor Fan Input
Variable

Mounting
Floor Standing

Noise Level
58 dB(A)

Outdoor Fan Input
350 W

Place of Origin
Japan

Power Consumption
13.5 kW

Power Mode
Other, Three Phase

Power Source
Other, Electric

Power Supply
50 Hz

Refrigerant
R410A

Remote Operated
Yes

Running Current
22 A

Sensible control
Automatic

Temperature Control
Digital

Type
Top Flow VRF Outdoor Unit

Type Of Compressor
Other, DC Inverter

Voltage
380-415V

Weight (kg)
285 kg

Working Temperature
-5C ~ 52C

Know more

Voltas Top Flow VRF Unit

MOQ : 1 Unit

Air Flow Capacity
6000 - 18000 m3/h (as per model)

Capacity
Multiple options (12 HP, 14 HP, 16 HP, 18 HP, 20 HP, 22 HP, 24 HP, 26 HP, 28 HP, 30 HP, 32 HP, 34 HP, 36 HP, 38 HP, 40 HP, 44 HP, 48 HP, 52 HP, 56 HP, 60 HP, 64 HP) as per model

Color
White/Off-white

Compressor
Other, Twin Rotary / Scroll Type

Condition
New

Cooling Capacity
11.2 kW to 180 kW (depends on model)

Cooling/Heating
Other, Cooling & Heating

Dimension (L*W*H)
Varies by model (Example: 17007601590 mm for 28 HP)

Energy Efficiency Rating
Other, Upto 4.30 (EER)

Fan Speed
Variable

Filtration Grade
Standard Air Filtration

Heating Capacity
12.5 kW to 200 kW (depends on model)

Indoor Fan Input
Multiple selections as per indoor unit

Mounting
Floor Standing

Noise Level
65 dB(A)

Outdoor Fan Input
Highefficiency DC motor

Place of Origin
India

Power Consumption
Depends on model and application

Power Mode
Other, Automatic Start/Stop

Power Source
Other, Electric

Power Supply
380~415V, 3N, 50 Hz

Refrigerant
R410A

Remote Operated
Yes

Running Current
Depends on capacity

Sensible control
Available

Temperature Control
Intelligent Digital Controller

Type
Top Flow VRF Outdoor Unit

Type Of Compressor
Other, Inverter Driven Compressor

Voltage
380-415V, 3 Phase, 50Hz

Weight (kg)
Varies by model (approx. 180-350 kg)

Working Temperature
Cooling: -5C to 52C; Heating: -20C to 24C

Know more

O General Top Flow VRF Unit

MOQ : 1 Unit

Air Flow Capacity
Up to 20400 m3/h

Capacity
7 HP to 60 HP

Color
White

Compressor
Other, Twin Rotary DC Inverter

Condition
New

Cooling Capacity
22.4 kW to 168 kW

Cooling/Heating
Other, Cooling & Heating

Dimension (L*W*H)
980 x 765 x 1500 mm (varies by model)

Energy Efficiency Rating
Other, High COP, Energy Saving

Fan Speed
Multi Step

Filtration Grade
High-Efficiency Filter

Heating Capacity
25.0 kW to 190 kW

Indoor Fan Input
Variable (model dependent)

Mounting
Floor Standing

Noise Level
As low as 56 dB(A)

Outdoor Fan Input
Variable (model dependent)

Place of Origin
Japan

Power Consumption
Low (depends on model and usage)

Power Mode
Other, Automatic/Manual

Power Source
Other, Electric

Power Supply
Three Phase

Refrigerant
R410A

Remote Operated
Yes

Running Current
Variable, model specific

Sensible control
Yes

Temperature Control
Microprocessor Precision Control

Type
Top Flow VRF Unit

Type Of Compressor
Other, Hermetically Sealed

Voltage
380-415V, 3 Phase, 50 Hz

Weight (kg)
275 kg (varies by model)

Working Temperature
-5C to 52C

Know more
