Voltas Top Flow VRF Unit

Get a Price/Quote

Product Details:

Cooling Capacity 22.4 kW - 72.8 kW (varies by model)
Power Consumption Varies as per model and application
Heating Capacity 25.0 kW - 80.0 kW (varies by model)
Dimension (L*W*H) 1078 x 400 x 1653 mm (8 HP); Other models vary
Place of Origin India
Sensible control Yes
Type Of Compressor DC Inverter
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Voltas Top Flow VRF Unit Price And Quantity

Minimum Order Quantity 1 Unit

Voltas Top Flow VRF Unit Product Specifications

Voltage 380-415V / 3Ph / 50Hz
Place of Origin India
Heating Capacity 25.0 kW - 80.0 kW (varies by model)
Dimension (L*W*H) 1078 x 400 x 1653 mm (8 HP); Other models vary
Indoor Fan Input Varies by indoor unit selection
Refrigerant R410A
Condition New
Sensible control Yes
Type Of Compressor DC Inverter
Energy Efficiency Rating High EER (up to 4.5)
Cooling/Heating Cooling & Heating
Capacity 8 HP - 26 HP (varies by model)
Color White
Power Consumption Varies as per model and application
Cooling Capacity 22.4 kW - 72.8 kW (varies by model)
Type Top Flow VRF Unit
Working Temperature -5C ~ 48C (Cooling), -20C ~ 24C (Heating)
Noise Level 58 dB(A) (Outdoor Unit)
Power Source Electric
Running Current 16A - 40A (varies by model)
Remote Operated Yes
Air Flow Capacity 8000-16000 m3/h (varies by model)
Temperature Control Microprocessor based
Fan Speed Multi-speed
Weight (kg) 275 - 425 kg (varies by model)
Power Mode Auto / Manual
Outdoor Fan Input 230 W - 600 W (varies by model)
Power Supply 380-415V / 3Ph / 50Hz
Mounting Floor Standing
Filtration Grade Standard filtration
Compressor Twin Rotary / Scroll (varies by model)

Intelligent Diagnostics Available
Defrosting Function Yes, automatic
Corrosion Protection Yes, with special coating
Heat Exchanger Material Copper Tube with Aluminium Fin
Maximum Piping Length 100 - 180 m (depends on model)
Control System Wired and Wireless Controllers Compatible
Maximum Height Difference 50 m (between indoor-outdoor units)
Phase Protection Yes
Application Commercial, Institutional, Industrial
Minimum Piping Length 5 m
Maximum Connectable Indoor Units Up to 64 units
Pipe Connection Liquid: 9.52 mm, Gas: 15.9 mm & above (model-specific)

Voltas Top Flow VRF Unit Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Seize a gilt-edged opportunity with the Voltas Top Flow VRF Unit, now available at a special rate for a limited time. Crafted with copper tubes and aluminium fins for superior efficiency, this crackerjack system supports up to 64 indoor units, ensuring seamless climate control for any commercial, institutional, or industrial space. Noteworthy features include high EER (up to 4.5), robust phase protection, and intelligent diagnostics. With a noise level as low as 58 dB(A) and automatic defrosting, this bargain buy maximizes comfort and reliability for discerning users.

Ideal Usage & Application Areas

The Voltas Top Flow VRF Unit is expertly designed for cooling and heating in commercial, institutional, and industrial environments. Its advanced features, such as microprocessor-based temperature control, multi-speed fan, and corrosion-resistant build, make it ideal for large office complexes, hospitals, educational institutions, and shopping centers. Thanks to flexible mounting, this system delivers consistent air flow and performance, ensuring optimal comfort across extensive floor plans with varying requirements.

Sample Supply, Export, and Dispatch Efficiency

Voltas offers samples of the Top Flow VRF Unit for evaluation, ensuring buyers can experience its performance before committing. With a strong supply ability, units are ready for quick dispatch, fulfilling bulk orders for Indian and international markets. The company expertly manages freight and logistics, ensuring reliable delivery across Asia and other main export markets. Customers benefit from seamless purchasing and dependable after-sales support, reflecting Voltas's commitment to service excellence.

FAQ's of Voltas Top Flow VRF Unit:

Q: How many indoor units can be connected to the Voltas Top Flow VRF system?

A: The system supports connections to up to 64 indoor units, making it suitable for extensive commercial or institutional installations.

Q: What applications are ideal for this VRF unit?

A: This unit is perfect for commercial, institutional, and industrial spaces such as offices, hospitals, malls, and educational premises, thanks to its robust performance and flexible installation.

Q: Where does Voltas primarily export the Top Flow VRF Unit?

A: The main export markets are Asia and other regions, supported by a strong supply chain network capable of efficient freight management.

Q: What extra features make the Voltas VRF Unit a noteworthy buy?

A: Notable features include intelligent diagnostics, automatic defrosting, corrosion protection, phase protection, microprocessor-based controls, and compatibility with wired and wireless controllers.

Q: How does the supply and dispatch process work for bulk orders?

A: With high supply ability and quick dispatch, bulk orders are efficiently processed and shipped, ensuring timely delivery to both domestic and international customers.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Top Flow VRF Unit' category

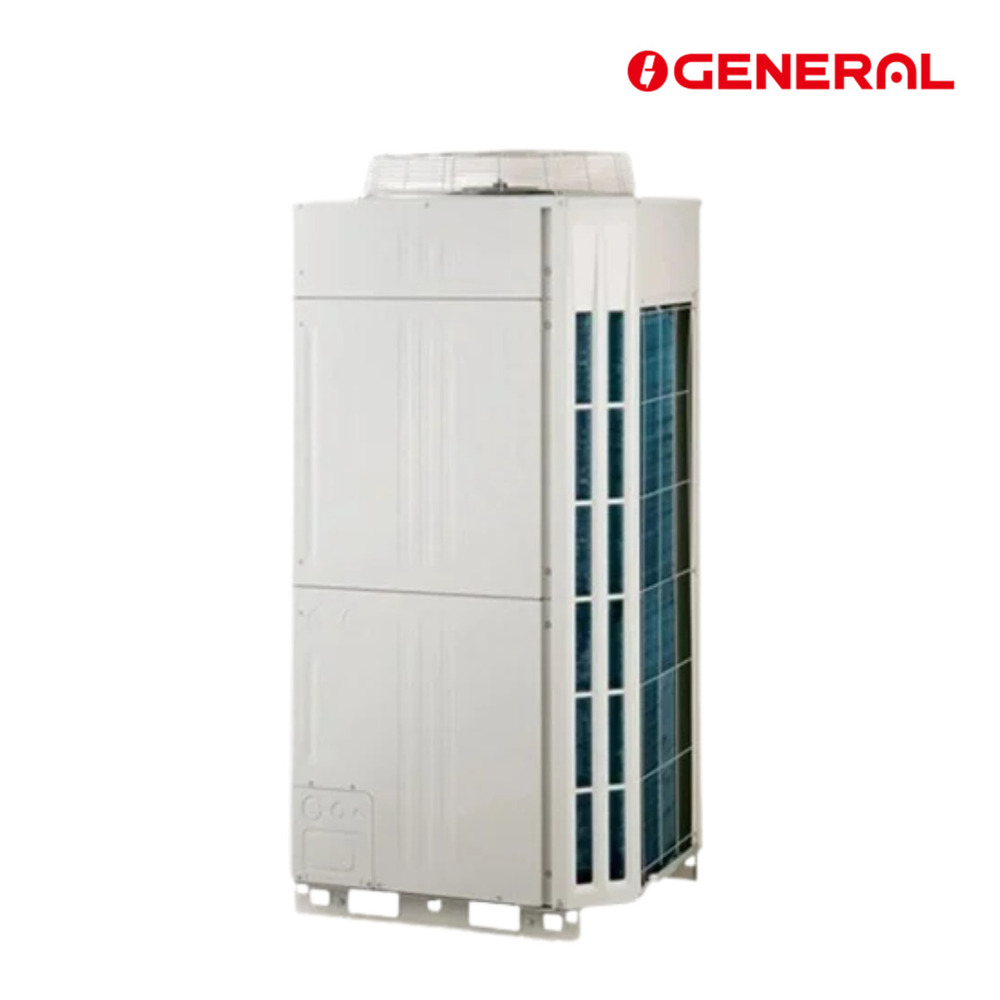

O General Top Flow VRF Unit Minimum Order Quantity : 1 Voltage : 380415V Place of Origin : Japan Dimension (L*W*H) : 1270 x 930 x 1600 mm Heating Capacity : 50 kW Indoor Fan Input : Variable Refrigerant : R410A Condition : New Sensible control : Automatic Type Of Compressor : Other, DC Inverter Energy Efficiency Rating : Other, High Cooling/Heating : Other, Yes Capacity : 16 HP Color : White Power Consumption : 13.5 kW Cooling Capacity : 45 kW Working Temperature : 5C ~ 52C Type : Top Flow VRF Outdoor Unit Noise Level : 58 dB(A) Power Source : Other, Electric Remote Operated : Yes Running Current : 22 A Air Flow Capacity : 9000 m3/h Temperature Control : Digital Fan Speed : Variable Weight (kg) : 285 kg Power Mode : Other, Three Phase Outdoor Fan Input : 350 W Power Supply : 50 Hz Mounting : Floor Standing Compressor : Other, Twin Rotary Filtration Grade : Standard
